Ultimate SD Upscale extensionをインストールします。手順の詳細はこちらの記事を参照して下さい。

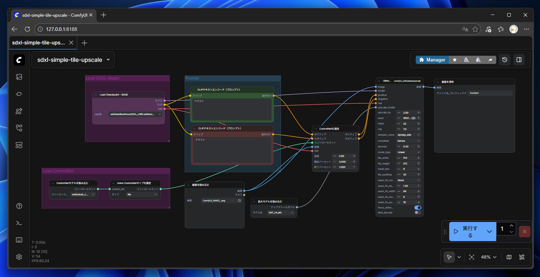

下図のワークフローを作成します。

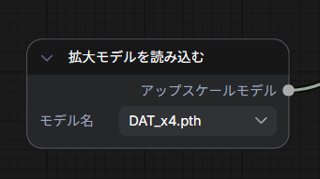

[拡大モデルを読み込む]ノードには "DAT_x4.pth" を指定します。アップスケーラーのモデルは (ComfyUIの配置ディレクトリ)\ComfyUI\models\upscale_models にアップスケーラーのモデルを配置します。

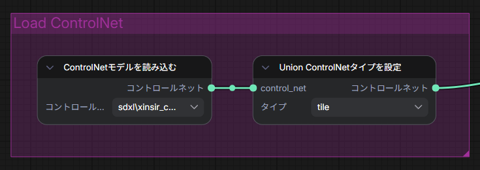

[ControlNetモデルを読み込む]ノードでは"xinsir controlnet-union-sdxl-1.0 promax" (9460e4db) を選択しています。
また、ContolNet Unionのどの機能を利用するかは、[Union ControlNetタイプを設定]ノードを配置して設定します。今回は"tile"を選択しています。
[ControlNetを適用]ノードの[強度]は1.0としておきます。(後ほど変更して違いを確認します)

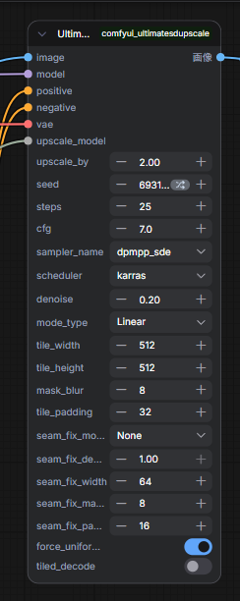

[Ultimate SD Upscale]ノードを配置しします。今回はデフォルトの値を利用します。[upscale_by] の値が "2"となっており2倍にアップスケールする設定です。

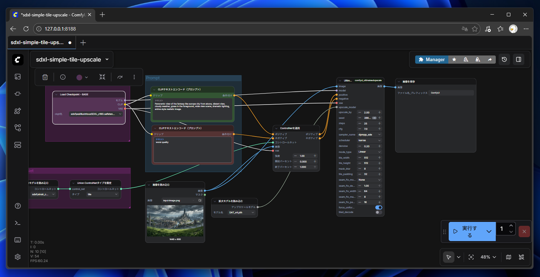

プロンプトは以下を入力します。

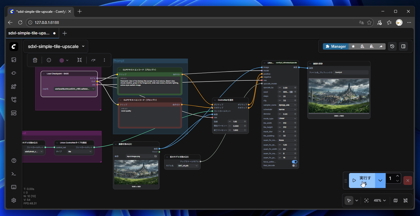

入力画像を設定して[実行する]ボタンをクリックし、画像生成を開始します。
入力画像は下図です。
右側の[画像を保存]ノードに画像が保存されます。
結果は下図です。ControlNetの[強度]を変更した結果も掲載します。
ControlNetの強度を変更してもそれほど大きな違いは出ない状況です。
![WAI-Illustrious v16.0 [ControlNet強度 1.0] - Ultimate SD Upscale extension を利用して画像をアップスケールする:画像9](/document/images/stable-diffusion-upscale-using-ultimate-upscale-extension-wai-illustrious-160-1?width=420)
![WAI-Illustrious v16.0 [ControlNet強度 0.5] - Ultimate SD Upscale extension を利用して画像をアップスケールする:画像10](/document/images/stable-diffusion-upscale-using-ultimate-upscale-extension-wai-illustrious-160-05?width=420)
![WAI-Illustrious v16.0 [ControlNet強度 0.25] - Ultimate SD Upscale extension を利用して画像をアップスケールする:画像11](/document/images/stable-diffusion-upscale-using-ultimate-upscale-extension-wai-illustrious-160-025?width=420)
![Nova Anikme v14.0 [ControlNet強度 0.5] - Ultimate SD Upscale extension を利用して画像をアップスケールする:画像12](/document/images/stable-diffusion-upscale-using-ultimate-upscale-extension-nova-anime-140-05?width=420)
![Nova Anikme v14.0 [ControlNet強度 0.25] - Ultimate SD Upscale extension を利用して画像をアップスケールする:画像13](/document/images/stable-diffusion-upscale-using-ultimate-upscale-extension-nova-anime-140-025?width=420)
![Nova Anikme v14.0 [ControlNet強度 0.1] - Ultimate SD Upscale extension を利用して画像をアップスケールする:画像14](/document/images/stable-diffusion-upscale-using-ultimate-upscale-extension-nova-anime-140-01?width=420)
{
"id": "4d7b3878-b691-4be4-9547-1afb0bf10eb0",
"revision": 0,
"last_node_id": 58,
"last_link_id": 76,
"nodes": [
{
"id": 4,
"type": "CheckpointLoaderSimple",
"pos": [
-138.1042750512044,
-1123.5009592325023
],
"size": [
420,
190.65625
],
"flags": {},
"order": 0,
"mode": 0,
"inputs": [],
"outputs": [
{
"name": "MODEL",
"type": "MODEL",
"slot_index": 0,
"links": [
74
]
},
{
"name": "CLIP",
"type": "CLIP",
"slot_index": 1,
"links": [
3,
5
]
},
{
"name": "VAE",
"type": "VAE",
"slot_index": 2,
"links": [
57,
70
]
}
],
"title": "Load Checkpoint - BASE",
"properties": {
"cnr_id": "comfy-core",
"ver": "0.3.33",
"Node name for S&R": "CheckpointLoaderSimple",
"models": [
{
"name": "sd_xl_base_1.0.safetensors",
"url": "https://huggingface.co/stabilityai/stable-diffusion-xl-base-1.0/resolve/main/sd_xl_base_1.0.safetensors?download=true",
"directory": "checkpoints"
}
]
},
"widgets_values": [
""
],
"color": "#323",
"bgcolor": "#535"
},
{
"id": 7,
"type": "CLIPTextEncode",
"pos": [
434.5537941417215,
-927.331732034614
],
"size": [
477.0625,
231.09375
],
"flags": {},
"order": 5,
"mode": 0,
"inputs": [
{
"name": "clip",
"type": "CLIP",
"link": 5
}
],
"outputs": [
{
"name": "CONDITIONING",
"type": "CONDITIONING",
"slot_index": 0,
"links": [
65
]
}
],
"properties": {
"cnr_id": "comfy-core",
"ver": "0.3.33",
"Node name for S&R": "CLIPTextEncode"
},
"widgets_values": [
""
],
"color": "#322",
"bgcolor": "#533"
},
{
"id": 6,
"type": "CLIPTextEncode",
"pos": [
428.7481790106368,
-1151.979392478821
],
"size": [
486.109375,
209.03125
],
"flags": {},
"order": 4,
"mode": 0,
"inputs": [
{
"name": "clip",
"type": "CLIP",
"link": 3
}
],
"outputs": [
{
"name": "CONDITIONING",
"type": "CONDITIONING",
"slot_index": 0,
"links": [
64
]
}
],
"properties": {
"cnr_id": "comfy-core",
"ver": "0.3.33",
"Node name for S&R": "CLIPTextEncode"
},
"widgets_values": [
""
],
"color": "#232",
"bgcolor": "#353"
},
{
"id": 19,
"type": "SaveImage",
"pos": [
1845.389141596063,
-1198.850980665231
],
"size": [
469.046875,
430.859375
],
"flags": {},
"order": 9,
"mode": 0,
"inputs": [
{
"name": "images",
"type": "IMAGE",
"link": 71
}
],
"outputs": [],
"properties": {
"cnr_id": "comfy-core",
"ver": "0.3.33"
},
"widgets_values": [
"ComfyUI"
]
},
{
"id": 53,
"type": "ControlNetApplyAdvanced",
"pos": [
1136.1966861204382,
-926.6781437863856
],
"size": [
273,
270
],
"flags": {},
"order": 7,
"mode": 0,
"inputs": [
{
"name": "positive",
"type": "CONDITIONING",
"link": 64
},
{
"name": "negative",
"type": "CONDITIONING",
"link": 65
},
{
"name": "control_net",
"type": "CONTROL_NET",
"link": 59
},
{
"name": "image",
"type": "IMAGE",
"link": 76
},
{
"name": "vae",
"shape": 7,
"type": "VAE",
"link": 57
}
],
"outputs": [
{
"name": "positive",
"type": "CONDITIONING",
"links": [
73
]
},
{
"name": "negative",
"type": "CONDITIONING",
"links": [
72
]
}
],
"properties": {
"cnr_id": "comfy-core",
"ver": "0.6.0",
"Node name for S&R": "ControlNetApplyAdvanced"
},
"widgets_values": [
0.65,
0,
1
]
},
{
"id": 54,
"type": "ControlNetLoader",
"pos": [
-388.65216995159557,
-609.1583187968763
],
"size": [
284,
112.65625
],
"flags": {},
"order": 1,
"mode": 0,
"inputs": [],
"outputs": [
{
"name": "CONTROL_NET",
"type": "CONTROL_NET",
"links": [
58
]
}
],
"properties": {
"cnr_id": "comfy-core",
"ver": "0.6.0",
"Node name for S&R": "ControlNetLoader"
},
"widgets_values": [
"sdxl\\xinsir_controlnet-union-promax-sdxl-1.0.safetensors"
]
},
{
"id": 55,
"type": "LoadImage",
"pos": [
398.0725658662402,
-598.8633815576198
],
"size": [
345.875,
271.0625
],
"flags": {},
"order": 2,
"mode": 0,
"inputs": [],
"outputs": [
{
"name": "IMAGE",
"type": "IMAGE",
"links": [
66,
76
]
},
{
"name": "MASK",
"type": "MASK",
"links": null
}
],
"properties": {
"cnr_id": "comfy-core",
"ver": "0.6.0",
"Node name for S&R": "LoadImage"
},
"widgets_values": [
"ComfyUI_00423_.png",
"image"
]
},
{
"id": 56,
"type": "SetUnionControlNetType",
"pos": [
-38.82253430487913,
-609.1943842109137
],
"size": [
298.15625,
112.65625
],
"flags": {},
"order": 6,
"mode": 0,
"inputs": [
{
"name": "control_net",
"type": "CONTROL_NET",
"link": 58
}
],
"outputs": [
{
"name": "CONTROL_NET",
"type": "CONTROL_NET",
"links": [
59
]
}
],
"properties": {
"cnr_id": "comfy-core",
"ver": "0.6.0",
"Node name for S&R": "SetUnionControlNetType"
},
"widgets_values": [
"tile"
]
},
{
"id": 57,
"type": "UltimateSDUpscale",
"pos": [
1505.0781631477385,
-1204.3271265533394
],
"size": [
277.859375,
808.625
],
"flags": {},
"order": 8,
"mode": 0,
"inputs": [
{
"name": "image",
"type": "IMAGE",
"link": 66
},
{
"name": "model",
"type": "MODEL",
"link": 74
},
{
"name": "positive",
"type": "CONDITIONING",
"link": 73
},
{
"name": "negative",
"type": "CONDITIONING",
"link": 72
},
{
"name": "vae",
"type": "VAE",
"link": 70
},
{
"name": "upscale_model",
"type": "UPSCALE_MODEL",
"link": 75
}
],
"outputs": [
{
"name": "IMAGE",
"type": "IMAGE",
"links": [
71
]
}
],
"properties": {
"cnr_id": "comfyui_ultimatesdupscale",
"ver": "1.6.2",
"Node name for S&R": "UltimateSDUpscale"
},
"widgets_values": [
2,
693101596824987,
"randomize",
25,
7,
"dpmpp_sde",
"karras",
0.2,
"Linear",
512,
512,
8,
32,
"None",
1,
64,
8,
16,
true,
false
]
},
{
"id": 58,
"type": "UpscaleModelLoader",
"pos": [
779.7811484241928,
-503.26416826540276
],
"size": [
270,
112.65625
],
"flags": {},
"order": 3,
"mode": 0,
"inputs": [],
"outputs": [
{
"name": "UPSCALE_MODEL",
"type": "UPSCALE_MODEL",
"links": [
75
]
}
],
"properties": {
"cnr_id": "comfy-core",
"ver": "0.6.0",
"Node name for S&R": "UpscaleModelLoader"
},
"widgets_values": [
"DAT_x4.pth"
]
}
],
"links": [
[
3,
4,
1,
6,
0,
"CLIP"
],
[
5,
4,
1,
7,
0,
"CLIP"
],
[
57,
4,
2,
53,
4,
"VAE"
],
[
58,
54,
0,
56,
0,
"CONTROL_NET"
],
[
59,
56,
0,
53,
2,
"CONTROL_NET"
],
[
64,
6,
0,
53,
0,
"CONDITIONING"
],
[
65,
7,
0,
53,
1,
"CONDITIONING"
],
[
66,
55,
0,
57,
0,
"IMAGE"
],
[
70,
4,
2,
57,
4,
"VAE"
],
[
71,
57,
0,
19,
0,
"IMAGE"
],
[
72,
53,
1,
57,
3,
"CONDITIONING"
],
[
73,
53,
0,
57,
2,
"CONDITIONING"
],
[
74,
4,
0,
57,
1,
"MODEL"
],
[
75,
58,
0,
57,
5,
"UPSCALE_MODEL"
],
[
76,
55,
0,
53,
3,
"IMAGE"
]
],
"groups": [
{
"id": 1,
"title": "Prompt",
"bounding": [
398.55396039862046,
-1245.9142358525014,
555.6272151066702,
560.8541303585763
],
"color": "#3f789e",
"font_size": 24,
"flags": {}
},
{
"id": 4,
"title": "Load SDXL Model",
"bounding": [
-180.1526636999355,
-1247.2578247509878,
489.5787386693701,
385.3120706255023
],
"color": "#a1309b",
"font_size": 24,
"flags": {}
},
{
"id": 13,
"title": "Load ControlNet",
"bounding": [
-431.27218000408584,
-708.2051269221256,
743.4487179487081,
233.5769230769206
],
"color": "#a1309b",
"font_size": 24,
"flags": {}
}
],
"config": {},
"extra": {
"ds": {
"scale": 0.48431863198614916,
"offset": [
621.9445107442103,
1474.7174862242912
]
},
"frontendVersion": "1.35.9",
"workflowRendererVersion": "Vue"
},
"version": 0.4
}
